Certified Company ISO 9001-2008
  • Types of Application:

    1) Pre-cast panels

    2) Pre-cast Joints

    3) Concrete Columns

Blast Protection of Critical Infrastructure

FasRaP will be able to effectively protect the occupants in critical infrastructure and increase the resistance of fragile components in the instance of a bomb attack on the building. FasRaP can be applied on pre-cast panels to increase strength while keeping thickness at a minimum, applied to strengthen the joints of pre-cast panels and to critical concrete columns.

Blast Mitigation

A blast test was concluded without any deformation to the FasRaP FRP on the front and back of the brick wall.

Brick wall (1,800mm X 2,400mm) reinforced with 6 layers of FasRaP and 500mm overlay at both top and bottom was subjected to 2000 kPa blast load. This was done with 20 kg of TNT charge equivalent at a standoff distance of 4.5 m between the wall and charge.

  • Peak Applied Pressure1964 kPa
  • Positive Impulse Phase892 kPa.ms

Final Results

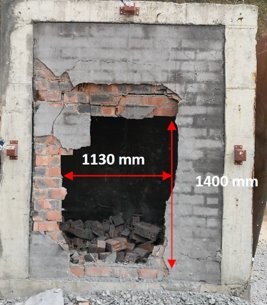

FasRaP Blast Mitigation 1

Control Brick Wall

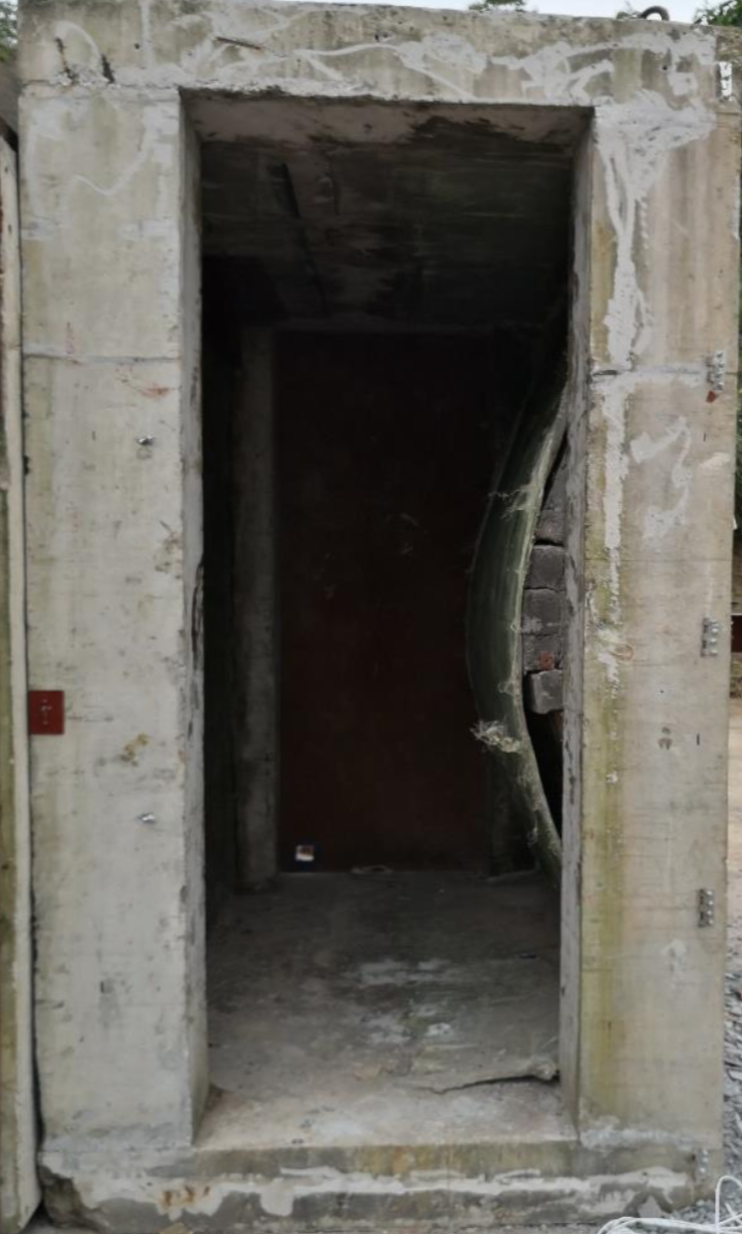

FasRaP Blast Mitigation 2

Wall with FasRaP (side view)

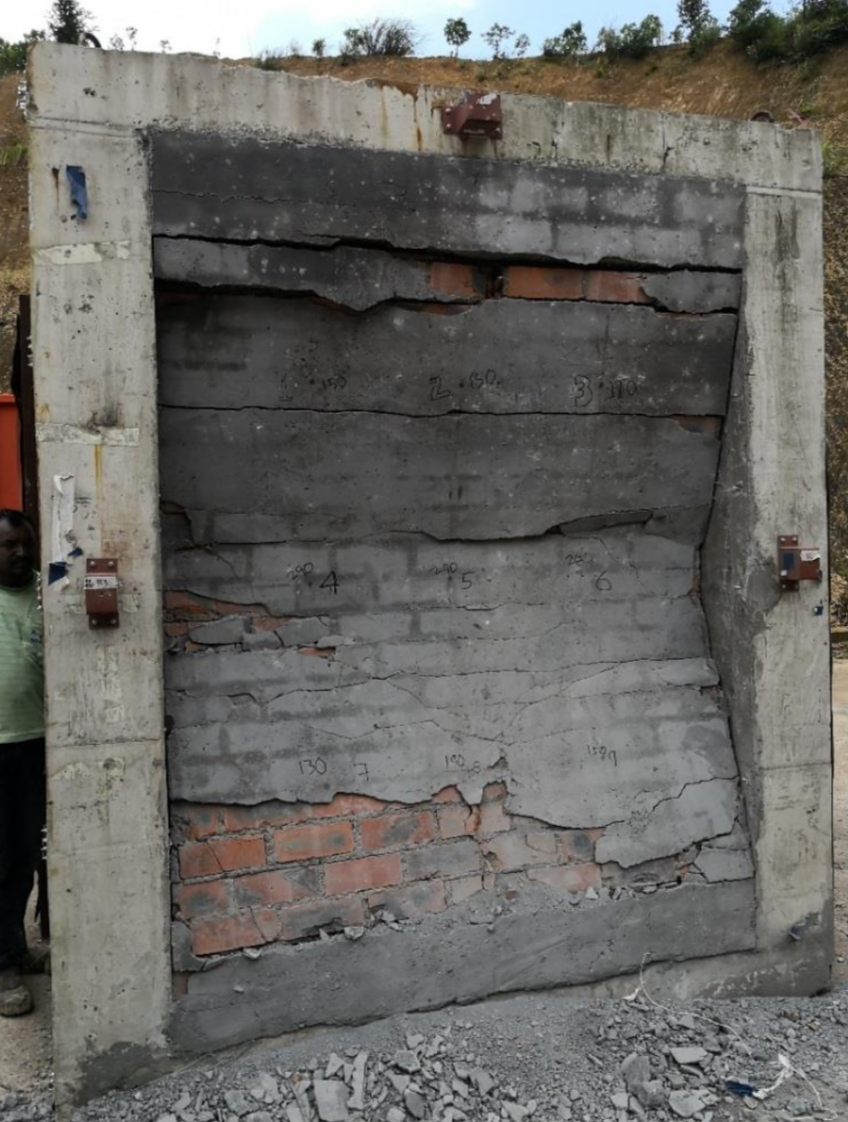

FasRaP Blast Mitigation 3

Wall with FasRaP (front view)
